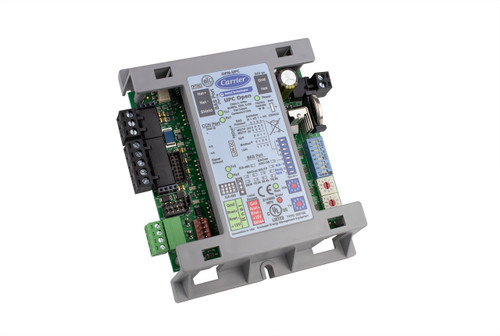

Carrier OPN-UPC Integrated i-Vu BACnet Controller

Carrier OPN-UPC Replacement Part

Includes:

• (1) - Integrated i-Vu BACnet Controller (OPN-UPC)

Specifications

• FACTORY INSTALLED FEATURES:
• Factory-Installed Option on Rooftops, Air-Cooled Chillers, and Water-Cooled Chillers
• Pre-Programmed to Share Equipment Data with Any BACnet Building Automation System - No On-Site Engineering Required
• Supports Carrier Communicating Space Sensors with Field Programming:
• Ideal for Single Zone Rooftop Applications
• Available in 4 Flavors, 2 of Which Have Large, Easy-to-Read LCD Displays
• Feature a Hidden Communication Port for Network Commissioning
• Supports Plug-and-Play Connectivity to Carrier’s i-Vu Building Automation System:
• Integrated Air Source Linkage Algorithm
• Built-in User Interface Graphics, Diagnostic Trends and Alarms
• Built-in Demand Limiting and Inherent Support for i-Vu Tenant Billing
• FIELD INSTALLED FEATURES:
• Library of CCN to BACnet Mapping Templates Available for Common Carrier Equipment, or Create Your Own Template Using the Snap Graphical Programming Tool
• Integrated Air Source Linkage Algorithm for Plug-and-Play Connectivity to the i-Vu Building Automation System
• Supports Demand Limiting and i-Vu Tenant Billing
• SPECIFICATIONS
• Communication Ports BAS port (Port 1A): EIA-485 port for BACnet MS/TP communications, Modbus communications (future) or N2 communications (future). Baud rate is DIP switch selectable.
• LON-OC Port: For connecting a LON Option Card (future)
• Local Access Port: For system start-up and troubleshooting (115.2 kbps)
• Rnet Port: For connecting Carrier communicating space sensors
• Protection Incoming power and network connections are protected by non-replaceable internal solidstate polyswitches that reset themselves when the condition that causes a fault returns to normal. The power, network, input, and output connections are also protected against voltage transient and surge events.
• Real Time Clock Battery-backed real time clock
• Battery 10-year Lithium CR2032 battery provides a minimum of 10,000 hours of trend data and time retention during power outages.
• Status Indicators LED status indicators for power, network communication, run status and errors
• Controller Addressing Rotary DIP switches set BACnet MS/TP MAC address of controller
• Environmental Operating Range Operating: -22° to 150°F (-30° to 66°C), 10-95% relative humidity, non-condensing
• Storage: -24°F to 140°F (-30° to 60°C), 10-95% relative humidity, non-condensing
• Power Requirements 24VAC +/- 10%, 50-60Hz
• 10VA power consumption
• 26VDC (25V min, 30V max)
• Single Class 2 source only, 100VA or less
• Dimensions (LxW): 5 3/16" x 4 1/2"

Country of Origin: USA

Replaces Old Carrier Part Numbers

• 30HX509099
• 30HX509099
• 30HX509098
• 48NG500469
• 30MP500347
• 38AP501876
• 38AP501878
• 00PSN500311500A
• 00PSN500308900A
• 00PSN500308800A
• 48ZZ501798
• HK50RL002

Other Part Numbers

Integrated BACnet® Communications Card, i-Vu® UPC Open ® , OPN-UPC, Carrier, United Technologies, 002106

Fits Carrier, Bryant, Payne Models:

(Press ctrl + F to find model number below.)

Carrier iVu & Open BACnet Controls
