# HVAC Control Boards - Furnace & Air Conditioner Circuit Boards

Shop genuine OEM control boards for furnaces, air conditioners, heat pumps, and air handlers. We stock ignition control boards, integrated furnace controls, defrost control boards, and more from all major HVAC brands at our Westland, Michigan warehouse.

## Why Buy Control Boards From Technical Hot & Cold?

**Genuine OEM Parts**
Control boards must be exact matches. We stock genuine manufacturer boards, not aftermarket imitations that can cause compatibility issues.

**Expert Board Identification**
Control boards can be confusing. Our specialists help you identify the correct board based on your equipment model number or existing board part number.

**Fast, Secure Shipping**
Control boards are sensitive electronic components. We package them carefully and ship same-day (orders before 3PM EST) from our Westland warehouse.

**Technical Support**
Need help diagnosing if your board is bad? Our team can guide you through troubleshooting before you order.

## Types of HVAC Control Boards

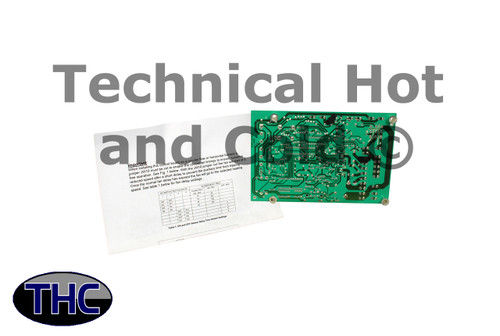

### Furnace Ignition Control Boards
Control the ignition sequence and safety monitoring in modern furnaces.

**Hot Surface Ignition (HSI) Boards:**
- Control 115V hot surface ignitors
- Monitor flame sensor
- Sequence inducer motor and gas valve
- 30-second, 45-second, or 60-second timing

**Direct Spark Ignition (DSI) Boards:**
- Generate spark for ignition
- Used in some furnaces and water heaters
- Electronic flame monitoring

**Integrated Furnace Control (IFC) Boards:**
- All-in-one control solution
- Ignition control + blower control
- Multiple stages and speeds
- Communication capable (some models)
- Diagnostic LEDs for troubleshooting

### Air Handler / Air Conditioner Control Boards
Control cooling systems and air handlers.

**Defrost Control Boards:**
- Heat pump defrost cycle management
- Temperature and time-based operation
- Emergency heat control

**Air Handler Control Boards:**
- Blower motor control
- Multi-speed and ECM motor control
- Thermostat interface
- Safety monitoring

**Condenser Control Boards:**
- Outdoor unit operation
- Compressor and fan control
- High/low pressure monitoring
- Communication interface

### Universal Replacement Control Boards
Aftermarket boards designed to replace multiple OEM boards.

**ICM Controls:**
- Universal furnace control boards
- Replace many OEM boards
- Lower cost alternative
- Detailed cross-reference guides

**White-Rodgers Universal Boards:**
- Hot surface ignition boards
- Diagnostic LED indicators
- Easy installation

## Popular Control Board Brands

**OEM Manufacturers:**
- **Carrier/Bryant** - Integrated furnace controls
- **Trane/American Standard** - Control boards and modules
- **Lennox** - Control boards for furnace and AC
- **Goodman/Amana** - Circuit boards and controls
- **Rheem/Ruud** - Control boards and modules
- **York/Coleman** - Electronic controls

**Aftermarket Suppliers:**
- **ICM Controls** - Universal replacement boards
- **White-Rodgers** - Control boards and modules
- **Honeywell** - Electronic controls
- **Robertshaw** - Ignition control systems

## How to Identify Your Control Board

**Information You Need:**
1. **Equipment Brand** - Carrier, Trane, Lennox, etc.
2. **Model Number** - Found on equipment data plate
3. **Board Part Number** - Usually printed on the board itself
4. **Board Revision** - May have revision codes (A, B, C, etc.)

**Where to Find Part Numbers:**
- Printed on the board (look carefully!)
- White sticker on board
- Control board box (if available)
- Equipment installation manual
- Manufacturer's parts breakdown

## Control Board Troubleshooting

### Signs of a Bad Control Board:

**Furnace Won't Ignite:**
- LED not flashing at all (dead board)
- Inducer motor doesn't start
- Ignitor doesn't glow
- Rapid LED flashing indicating fault

**Intermittent Operation:**
- System starts then stops randomly
- Works sometimes, fails other times
- Resets when board is tapped or moved

**Error Codes:**
- LED flashes diagnostic codes
- Consult manufacturer guide
- May indicate board failure or other issue

**Physical Damage:**
- Burned or discolored components
- Swollen capacitors on board
- Cracked circuit traces
- Moisture or corrosion damage

### Before Replacing the Board:

**Check These First:**
1. **24V Transformer** - Verify proper voltage
2. **Fuse on Board** - Often 3-5 amp fuse
3. **Wire Connections** - Ensure all secure
4. **Thermostat Wiring** - Check for shorts
5. **Flame Sensor** - Clean if furnace
6. **Pressure Switches** - Verify operation
7. **Limit Switches** - Check for open circuits

**Many "bad board" diagnoses are actually other components!**

## Control Board Installation

**CRITICAL - Read Before Installing:**

⚠️ **Static Electricity Can Destroy Boards!**
- Touch grounded metal before handling
- Use anti-static wrist strap if available
- Handle board by edges only
- Keep board in anti-static bag until installation

**Installation Steps:**

1. **Turn Off All Power**
   - Breaker and furnace switch
   - Verify with voltage tester

2. **Take Photos**
   - Photograph all wire connections
   - Label wires if needed
   - Note any jumper settings

3. **Remove Old Board**
   - Disconnect all wires one at a time
   - Remove mounting screws
   - Keep old board for reference

4. **Install New Board**
   - Match wire connections to photos
   - Secure all terminals tightly
   - Mount board securely
   - Ensure no wires are pinched

5. **Double-Check Wiring**
   - Compare to photos and diagram
   - Verify polarity (+ and -)
   - Check transformer connections

6. **Power Up and Test**
   - Restore power
   - Observe LED for proper codes
   - Test system operation
   - Monitor for several cycles

## Common Installation Mistakes

❌ **Reversed Polarity**
- C and R wires reversed
- Can damage board immediately

❌ **Shorted Thermostat Wires**
- Bare wires touching
- Blown board fuse

❌ **Wrong Transformer Voltage**
- 24V systems require 24V transformer
- Verify voltage at board terminals

❌ **Loose Connections**
- Intermittent problems
- Arcing can damage board

❌ **Jumper Settings Not Matched**
- Many boards have configuration jumpers
- Must match old board settings

## Control Board FAQs

**Q: Why are control boards so expensive?**
A: They're complex electronic assemblies designed for your specific equipment. Development, testing, and low production volumes contribute to cost.

**Q: Can I repair a control board instead of replacing?**
A: Generally no. Modern boards have surface-mount components difficult to repair. Replacement is more reliable.

**Q: Will a universal board work in my furnace?**
A: Maybe. Check compatibility guides carefully. OEM boards are always safest choice.

**Q: Why did my board fail?**
A: Common causes:
- Lightning/power surge
- Short circuit in wiring
- Moisture/condensation
- Component age/failure
- Improper voltage

**Q: Should I replace other parts with the board?**
A: Recommended:
- Flame sensor (if furnace)
- Transformer (if suspect)
- Check all safety switches

**Q: Do control boards have a warranty?**
A: Yes, typically 1-year manufacturer warranty. Save receipt and board packaging.

## Protecting Your Investment

**Surge Protection:**
Install whole-house surge protector or:
- HVAC-specific surge protector
- Protects expensive electronics
- Inexpensive insurance

**Proper Maintenance:**
- Annual professional service
- Keep furnace area dry
- Ensure proper ventilation
- Address issues promptly

**Quality Installation:**
- Use proper wire sizes
- Secure all connections
- Follow manufacturer instructions
- Consider professional installation

## Diagnostic LED Codes

Most modern boards have diagnostic LEDs that flash codes:

**Common Patterns:**
- Steady on/off - Normal operation
- Slow flash - Waiting for heat call
- Fast flash - System lockout/error
- Multiple flashes - Specific error codes

**Consult your equipment manual** for specific code meanings. We can help interpret codes if needed.

## When to Call a Professional

Consider professional service if:
- You're uncomfortable with electrical work
- Wiring is confusing or undocumented
- Multiple components may be at fault
- System uses 230V or 460V power
- Warranty work is needed
- Repeated board failures

## Need Help Selecting a Control Board?

Our HVAC parts specialists are here to help! Contact us:
- **Phone:** [Your phone number]
- **Email:** [Your email]
- **Hours:** [Your business hours]
- **Location:** Westland, MI - Local pickup available

**Have your equipment model number or existing board part number ready. Browse our control board selection below or contact us for expert assistance!**
