Deltatherm 090-0358 Replacement Part
CALL (734) 326-3900 or SEND MESSAGE TO PARTS@TECHNICALHOTANDCOLD.COM FOR PRICE!
Includes:

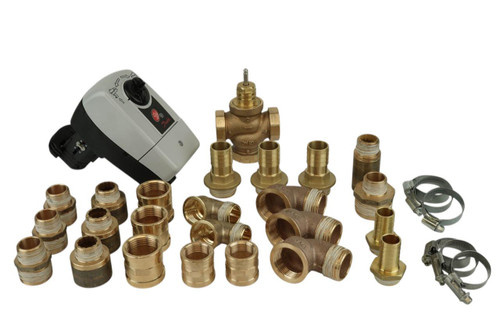

- (1) - 3-Way Valve Retrofit Kit (090-0358)
Specifications
- Valve
- (Danfoss VRB3) Model Code: 065Z0215 Type: 3-Way Mixing Valve Size: DN15 (1/2") Pressure Rating: PN16 Flow (Kvs): 4.0 m(cubed)/h Temperature Range: Up to 130C (266F) Body Material: Brass
- Actuator
- (Danfoss AME 435)
- Manufacturer: 082H0161 Supply Voltage: 24 VAC/DC Power Consumption: 4.5 VA Control Signal: 0–10V / 4–20mA Force: 400N Stroke: 20mm Speed: ~5 s/mm Protection Rating: IP54
Replaces Old Deltatherm Part Numbers
- There are no older part numbers.
Other Part Numbers
AME 435, AME 25, AME 55, VRB3, VRG3
Technical Hot & Cold honors all manufacturer warranties and offers a 1-year warranty on non-maintenance items.
