# Pressure Switches - Furnace Air Pressure & AC Refrigerant Switches

Shop replacement pressure switches for furnaces, air conditioners, and heat pumps. We stock air proving switches, draft pressure switches, high pressure cutouts, low pressure controls, and dual pressure switches from all major HVAC brands at our Westland, Michigan warehouse.

## Why Buy Pressure Switches From Technical Hot & Cold?

**Complete Switch Selection**
From furnace air pressure switches to AC refrigerant pressure controls, we stock the switches HVAC professionals rely on.

**OEM Quality Parts**
Genuine manufacturer switches and premium aftermarket replacements from trusted brands like White-Rodgers, Honeywell, and Carrier.

**Same-Day Shipping**
Pressure switches in stock ship today when ordered before 3PM EST from our Westland warehouse.

**Expert Switch Identification**
Pressure switches have specific pressure ratings. Our team helps identify the correct replacement for your equipment.

## Types of Pressure Switches

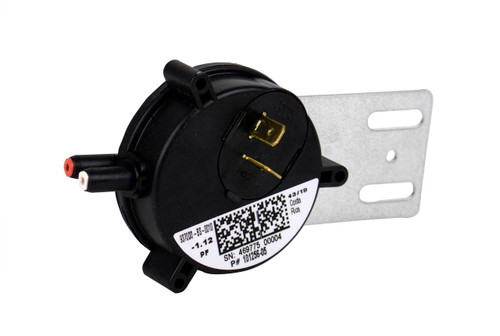

### Furnace Air Pressure Switches
Monitor negative pressure created by draft inducer.

**Function:**
- Proves adequate draft before ignition
- Prevents operation with blocked vent
- Safety interlock in ignition sequence
- Required on all induced-draft furnaces

**Common Pressure Ratings:**
- 0.2" W.C. (water column)
- 0.3" W.C.
- 0.4" W.C.
- 0.5" W.C.
- 0.75" W.C.
- 1.0" W.C.

**Switch Types:**
- **Normally Open (N.O.)** - Closes on rise (most common)
- **Normally Closed (N.C.)** - Opens on rise (less common)
- **SPST** - Single pole, single throw
- **SPDT** - Single pole, double throw

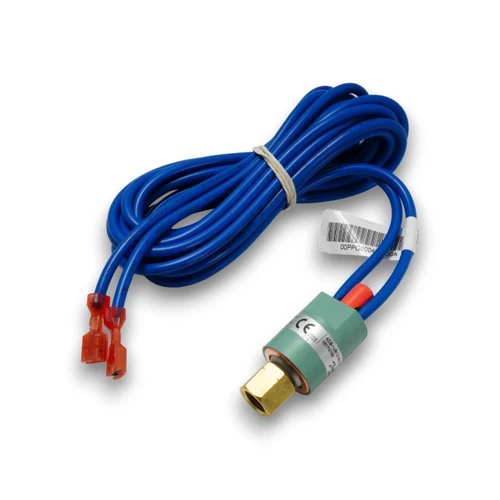

### AC High Pressure Switches
Protect compressor from excessive head pressure.

**Function:**
- Opens on high refrigerant pressure
- Prevents compressor damage
- Indicates system problems
- Manual or auto-reset types

**Typical Cut-Out Pressures:**
- R-410A: 550-650 PSI
- R-22: 400-450 PSI
- Varies by system design

**Common Causes of Tripping:**
- Dirty condenser coil
- Condenser fan failure
- Overcharge
- Non-condensables in system
- Restricted airflow

### AC Low Pressure Switches
Protect compressor from low suction pressure.

**Function:**
- Opens on low refrigerant pressure
- Prevents compressor damage
- Freeze protection
- Indicates refrigerant loss

**Typical Cut-Out Pressures:**
- R-410A: 50-75 PSI
- R-22: 25-50 PSI
- Varies by system design

**Common Causes of Tripping:**
- Low refrigerant charge
- Restricted filter/coil
- Frozen evaporator
- Metering device problems
- Blower motor failure

### Dual Pressure Switches
Combined high and low pressure protection.

**Features:**
- Two switches in one housing
- Separate high and low cutouts
- Space-saving design
- Common in residential AC

**Advantages:**
- One part instead of two
- Simplified installation
- Less potential leak points
- Cost-effective

### Heat Pump Pressure Switches
Special switches for heat pump systems.

**Applications:**
- Heating mode protection
- Cooling mode protection
- Defrost cycle control
- Dual setpoint operation

## Popular Pressure Switch Brands

**OEM Manufacturers:**
- **Carrier/Bryant** - Air pressure and refrigerant switches
- **Trane/American Standard** - Pressure controls
- **Lennox** - Air and refrigerant switches
- **Goodman/Amana** - Pressure switches
- **Rheem/Ruud** - Pressure controls

**Aftermarket Suppliers:**
- **White-Rodgers** - Industry standard switches
- **Honeywell** - Quality pressure controls
- **Dwyer** - Precision switches
- **Tecumseh** - Refrigerant controls
- **Ranco** - Pressure controls

## How to Identify Your Pressure Switch

### For Furnace Air Pressure Switches:

**Information Needed:**
1. **Furnace model number** - On data plate
2. **Switch part number** - On switch itself
3. **Pressure rating** - In inches W.C.
4. **Number of ports** - 1-port or 2-port
5. **Switch type** - N.O. or N.C., SPST or SPDT

**Where to Find:**
- Label on switch
- Furnace parts diagram
- Service manual
- Old switch markings

### For AC Pressure Switches:

**Information Needed:**
1. **Refrigerant type** - R-410A, R-22, etc.
2. **Cut-out pressure** - PSI rating
3. **Cut-in pressure** - Reset point (if auto-reset)
4. **Manual or auto-reset**
5. **Connection type** - Thread size

## Pressure Switch Troubleshooting

### Furnace Air Pressure Switch Issues:

**Furnace Won't Start - Switch Open:**
- Rubber tubing disconnected or cracked
- Tubing blocked with condensate
- Switch stuck open (failed)
- Draft inducer not running
- Vent blocked or restricted
- Pressure switch port plugged

**Diagnostic Steps:**
1. **Verify draft inducer runs**
2. **Check rubber tubing** - Look for cracks
3. **Clear water from tubing** - Blow out if needed
4. **Check vent system** - Must be clear
5. **Test switch manually** - Jump switch (briefly, for diagnosis)
6. **Measure pressure** - Use manometer

**Testing the Switch:**
- Disconnect power
- Remove one wire
- Use multimeter on continuity
- Switch should close when vacuum applied
- Should open when vacuum removed

### AC Pressure Switch Issues:

**System Won't Start - Switch Open:**
- Refrigerant charge too high or low
- Restricted airflow
- Dirty coils
- Failed switch
- Wiring problems

**Diagnostic Steps:**
1. **Reset switch** (if manual reset)
2. **Check refrigerant pressures**
3. **Inspect coils** - Clean if dirty
4. **Verify airflow** - Check filter, blower
5. **Test switch** - Jump briefly for diagnosis
6. **Check wiring** - Connections tight

## Furnace Pressure Switch Installation

**Safety First:**
1. Turn off all power
2. Turn off gas
3. Let furnace cool
4. Verify no voltage

**Replacement Steps:**

1. **Take Photos**
   - Wire connections
   - Tubing connections
   - Switch orientation

2. **Disconnect Wires**
   - Label if needed
   - Note terminal positions

3. **Disconnect Tubing**
   - Carefully remove rubber tubes
   - Inspect for cracks (replace if needed)
   - Note which port connects where

4. **Remove Old Switch**
   - Usually 1-2 mounting screws
   - Note exact mounting position

5. **Install New Switch**
   - Same position as old switch
   - Secure mounting screws
   - Match orientation

6. **Reconnect Tubing**
   - Push tubing firmly onto ports
   - Ensure good seal
   - Replace cracked tubing

7. **Reconnect Wires**
   - Match wire colors to photos
   - Secure terminal screws
   - Ensure tight connections

8. **Test Operation**
   - Restore power
   - Call for heat
   - Verify draft inducer starts
   - Listen for switch click
   - Monitor complete cycle

## AC Pressure Switch Installation

**Safety Critical:**
1. Turn off all power
2. Recover refrigerant (if needed)
3. Wear safety glasses
4. Have proper tools

**For Refrigerant Switches:**

1. **Recover Refrigerant** (if necessary)
   - Some switches can be replaced with system running
   - Schrader valve type switches
   - Others require recovery

2. **Disconnect Wires**
   - Photo connections first
   - Label terminals

3. **Remove Old Switch**
   - Wrench on flat surfaces only
   - Support tubing while removing
   - Catch any refrigerant loss

4. **Install New Switch**
   - Apply thread sealant or Teflon tape
   - Tighten to spec (don't overtighten!)
   - Support tubing while tightening

5. **Reconnect Wires**
   - Match wire colors
   - Secure connections

6. **Leak Test**
   - Apply leak detector
   - Check for leaks
   - No leaks = proceed

7. **Test Operation**
   - Restore power
   - Monitor pressures
   - Verify switch operation

## Common Installation Mistakes

❌ **Wrong Pressure Rating**
- Must match furnace requirements
- Wrong rating = won't close properly
- Check furnace specs

❌ **Reversed Tubing Connections**
- Draft inducer port vs trap port
- Follow diagram carefully
- Incorrect = won't prove

❌ **Cracked Tubing**
- Old tubing gets brittle
- Small cracks cause problems
- Always inspect, replace if suspect

❌ **Loose Wire Connections**
- Causes intermittent operation
- Tighten all terminals
- Check with gentle tug

## Pressure Switch Maintenance

**For Furnace Switches:**
- Inspect tubing annually
- Clear any condensate buildup
- Check for cracks in tubing
- Verify secure connections

**For AC Switches:**
- Annual system maintenance
- Monitor operating pressures
- Clean coils regularly
- Address issues promptly

**Tubing Maintenance:**
- Replace every 3-5 years preventively
- Use proper silicone tubing
- Route away from hot surfaces
- Secure against vibration

## Pressure Switch FAQs

**Q: Why won't my furnace start after replacing the pressure switch?**
A: Check:
- Tubing properly connected
- No air leaks in tubing
- Draft inducer running
- Vent system clear
- Correct switch rating

**Q: Can I jump the pressure switch to make the furnace run?**
A: Only for brief diagnosis, never permanently. Pressure switches are critical safety devices.

**Q: How do I know what pressure rating I need?**
A: Use the part number from your old switch or furnace parts diagram. Pressure ratings are specific to each furnace model.

**Q: Why does my pressure switch keep failing?**
A: Usually indicates an underlying problem:
- Blocked vent
- Cracked tubing
- Condensate issues
- Wrong pressure rating
- Vent too long or undersized

**Q: Can I use a universal pressure switch?**
A: Some universal switches exist, but OEM-specific switches are always best. Pressure ratings must match exactly.

**Q: How do I test a pressure switch?**
A: With multimeter on continuity, apply vacuum to ports. Switch should close. Remove vacuum, switch should open.

**Q: What causes condensate in pressure switch tubing?**
A: Normal for high-efficiency furnaces. Regular clearing may be needed. Ensure proper drainage.

**Q: Should AC pressure switches be manual or auto-reset?**
A:
- **High pressure**: Usually auto-reset (allows recovery from temporary high pressure)
- **Low pressure**: Often manual reset (indicates refrigerant loss requiring service)

## When to Replace vs Reset

**Replace the Switch If:**
- Switch won't close even with proper pressure
- Stuck in closed position
- Visible damage or corrosion
- Diaphragm failed
- 10+ years old and failing

**Reset If:**
- Manual reset type
- First occurrence
- Underlying cause addressed
- Switch tests good
