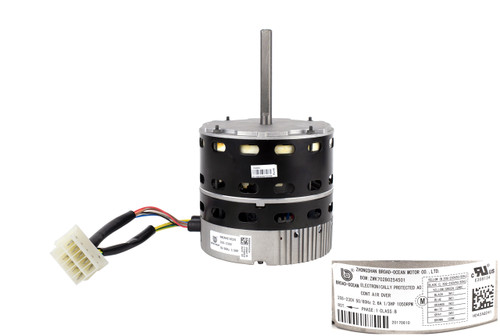

Carrier HD42AQ241 ECM X-13 Blower Motor Assembly

Carrier HD42AQ241 Replacement Part

NOTE: THIS PART IS NO LONGER AVAILABLE. IT HAS BEEN REPLACED BY PART # HD42AR224

Includes:

• (1) - ECM X-13 Blower Motor Assembly (HD42AQ241)

Specifications

• Manufacturer: Zhongshan Broad-Ocean Motor Co., LTD.
• Model # ZWK702B0254501
• ECM Type: X-13
• Horsepower: 1/3
• Voltage: 208-230
• Hertz: 50/60
• Amperage: 2.60
• Phase: Single
• RPM: 1050
• Frame: 48
• Electronically Protected
• Motor Cooling: Air Over
• Insulation Class: B
• Bearings: Ball
• Mount Type: Belly Band
• Rotation: Counterclockwise Lead End
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2"
• Shaft Length: 3 15/16"

Note: Always check the blower wheel on your blower assembly. Bad or unbalanced blower wheels can cause premature motor failure due to vibration. If you are not sure what blower wheel fits your blower assembly, call us at 734-326-3900.

🚀 Note: The most common cause of ECM motor failure is poorly conditioned power. To protect sensitive ECM modules against transient voltage, power surges, lightning, and voltage spikes, it is highly recommended that you install a Zebra X13PR inline ECM protector.

Replaces Old Carrier Part Numbers

• HD42AQ233
• HD42AR224
• HD42AQ250

Other Part Numbers

HD 42AQ 241, ECM X13, Broad-Ocean, E308134, D1708092000328, D5002, RoHS, Replacement Components Division, Factory Authorized Parts, Carrier Corporation, Blower Motor, KMSAH014C24, D5003, D171208998700080, V006A11B,C17120417, 02340, FF

Fits Carrier, Bryant, Payne Models:

(Press ctrl + F to find model number below.)

FX4DNF025000AAAA, FX4DNF025000ABAA, FX4DNF025005AAAA, FX4DNF025005ABAA, FX4DNF025L00ABAA, FX4DNF025L05ABAA, FX4DNF025T00AAAA, FX4DNF025T00ABAA, FX4DNF025T05AAAA, FX4DNF025T05ABAA, PF4MNB025000AAAA, PF4MNB025000ABAA, PF4MNB025L00ABAA, PF4MNB025T00AAAA, PF4MNB025T00ABAA
