Panasonic - Import 4PS156MAA Rotary Compressor

Panasonic - Import 4PS156MAA Replacement Part

Includes:

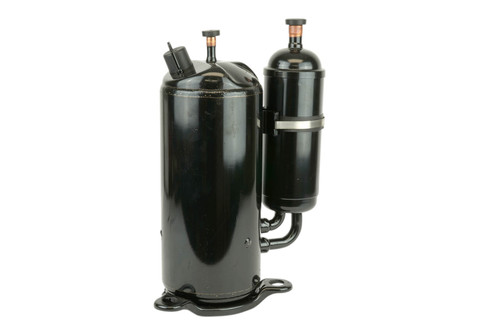

• (1) - Rotary Compressor w/ Muffler (4PS156MAA)
• (1) - Electrical Cover (-)
• (1) - Electrical Cover Gasket (-)
• (1) - Electrical Cover Mounting Nut (-)
• (1) - Mounting Nut Gasket (-)
• (3) - Mounting Grommet (-)

Specifications

• Manufacturer: Panasonic
• Model # 4PS156MAA
• Type: Rotary
• Refrigeration: R407C
• Voltage: 200
• Hertz: 50/60
• Phase: 3
• Suction Line Height: 10 7/8"
• Discharge Line Height: 11 5/8"

Country of Origin: Malaysia

Note: - This can be used to replace the Sanyo 802 252 83 (C-RN79H3B) compressor. This is a R22 compressor the new compressor (4PS156MAA) is a R407C compressor. The system will have to be updated to R407C in order to work. Modifications will be required for fitment!- This can be used to replace the Toshiba TH106X2-K mounting and piping modifications will be required for fitment! You will also need to use R407C.

Replaces Old Panasonic - Import Part Numbers

• TH106X2-K

Other Part Numbers

4PS156MAA, Panasonic, C1010118, Compressor

Fits Models:

(Press ctrl + F to find model number below.)

Various. (Call 734-326-3900 with your model and serial number for more information.)
