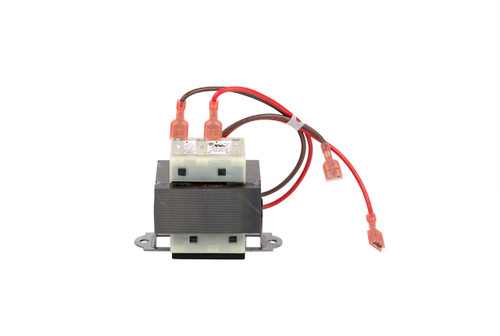

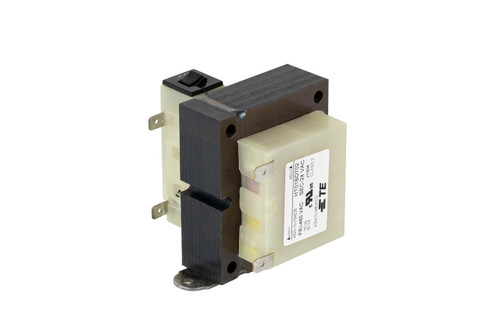

# HVAC Transformers - 24V Control Transformers

Shop replacement transformers for furnaces, air conditioners, and HVAC control systems. We stock 24V transformers in all VA ratings from 40VA to 100VA from all major brands at our Westland, Michigan warehouse.

## Why Buy Transformers From Technical Hot & Cold?

**Complete Transformer Selection**
From standard 40VA to heavy-duty 100VA+ transformers, we stock the power supplies your HVAC system needs.

**Quality Brands**
White-Rodgers, Honeywell, Packard, Mars - trusted names in HVAC transformers with UL/CSA certifications.

**Same-Day Shipping**
Transformers in stock ship today when ordered before 3PM EST from our Westland warehouse.

**Expert VA Rating Guidance**
Not sure what VA rating you need? Our team helps calculate the right transformer size for your system.

## What is an HVAC Transformer?

The transformer is a power supply that:
- Steps down 120V to 24V
- Powers thermostat and controls
- Supplies control voltage throughout system
- Enables safe low-voltage operation
- Required in virtually all modern HVAC systems

**Located:** Usually inside furnace or air handler
**Function:** Convert 120V AC to 24V AC for controls

## Transformer Specifications

### Primary Voltage:
- **Input:** 120V AC (most common)
- **Input:** 208V AC (some commercial)
- **Input:** 240V AC (less common)

### Secondary Voltage:
- **Output:** 24V AC (standard)
- **Output:** Sometimes 24V AC with center tap

### VA Rating (Power Capacity):
- **40VA** - Basic systems, single thermostat
- **50VA** - Standard residential systems
- **75VA** - Larger systems, multiple zones
- **100VA** - Multi-zone, smart thermostats

## How to Size a Transformer

### Calculate VA Requirements:

**Add Up All 24V Loads:**

1. **Thermostat:** 1-3VA (mechanical) to 10VA (smart WiFi)
2. **Gas Valve:** 10-15VA
3. **Contactors:** 10-15VA each
4. **Zone Dampers:** 10-20VA each
5. **Control Boards:** 5-10VA
6. **Other Controls:** Varies

**Example Calculation:**
- Smart Thermostat: 10VA
- Gas Valve: 15VA
- AC Contactor: 15VA
- Total: 40VA
- **Use 50VA transformer** (25% safety margin)

### VA Rating Selection:

**40VA Transformers:**
- Basic single-zone systems
- Mechanical thermostats
- Minimal controls
- Older systems

**50VA Transformers:**
- Standard residential systems
- Most common rating
- Single thermostat
- Standard controls

**75VA Transformers:**
- Smart WiFi thermostats
- Multi-zone systems (2-3 zones)
- Multiple contactors
- Advanced controls

**100VA+ Transformers:**
- Large multi-zone systems
- Multiple smart thermostats
- Complex control systems
- Commercial applications

### Upgrade Considerations:

**When to Upsize:**
- Adding smart thermostat
- Adding zone system
- Multiple WiFi thermostats
- Nuisance breaker trips
- Voltage drops under load

**Safe to Oversize:**
- Bigger transformer won't hurt
- Provides safety margin
- Accommodates future upgrades
- More stable voltage

## Types of Transformers

### Plug-In Transformers
Convenient power supply for add-ons.

**Features:**
- Standard outlet plug
- No wiring required
- Easy installation
- Perfect for:
  - Adding C-wire for smart thermostat
  - Zone control panels
  - Accessory power

**Common Uses:**
- Smart thermostat power (when C-wire missing)
- Humidifier controls
- Zone damper systems
- Additional 24V power source

### Class 2 Transformers
Standard HVAC control transformers.

**Features:**
- UL Listed Class 2
- Current-limited output
- Safe for control wiring
- Most common type
- Built into furnaces

**Advantages:**
- Meets safety codes
- Fused or current-limited
- Inherently safe design

### Step-Down Transformers
Convert higher voltage to 24V.

**Voltage Options:**
- 120V to 24V (most common)
- 208V to 24V (commercial)
- 240V to 24V (some equipment)
- 277V to 24V (commercial lighting controls)

### Enclosed vs Open Transformers

**Enclosed Transformers:**
- Protective metal housing
- Mount anywhere
- Better protection
- Commercial applications

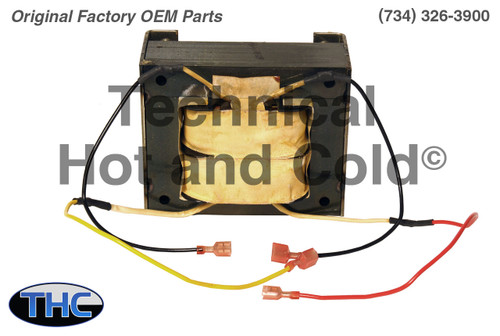

**Open Transformers:**
- Exposed coils
- Must mount in equipment
- Lower cost
- Residential common

## Common Transformer Problems

### Symptoms of Bad Transformer:

**No 24V Output:**
- Dead transformer
- Blown fuse (if present)
- Thermostat blank
- System won't operate

**Low Voltage:**
- Output below 22V
- Intermittent operation
- Thermostat issues
- Weak relay/contactor operation

**Overheating:**
- Transformer hot to touch
- Burning smell
- Hum or buzzing (louder than normal)
- Overloaded

**Tripped Breaker:**
- Furnace breaker trips
- Shorted transformer
- Overload condition
- Wiring problem

### Causes of Transformer Failure:

**Overload:**
- Undersized for load
- Too many devices
- Smart thermostats draw more power
- Zone systems added

**Short Circuit:**
- Damaged thermostat wire
- Bare wires touching
- Shorted control
- Pinched wire

**Power Surge:**
- Lightning strike
- Utility surge
- Compressor start surge
- Damaged windings

**Age:**
- 15-20 year lifespan
- Insulation breakdown
- Normal wear

**Moisture:**
- Condensation
- Flood damage
- Corrosion

## Transformer Testing

### Test Output Voltage:

1. **Set Multimeter to AC Volts**
2. **Measure at Secondary Terminals**
   - Should read 24-28V AC
   - No load: 26-28V typical
   - Under load: 22-26V minimum
3. **If Below 22V:**
   - Transformer weak or bad
   - Or excessive load

### Test for Short:

1. **Turn Off Power**
2. **Disconnect All Wires from Secondary**
3. **Test Output Voltage**
   - Should read 26-28V
   - If now normal = short in wiring
   - If still low/zero = bad transformer

### Check Primary:

1. **Verify 120V at Primary**
   - Should have full line voltage
   - No voltage = wiring problem
   - Low voltage = electrical issue

## Transformer Replacement

**Safety First:**
1. Turn off power at breaker
2. Verify no voltage with tester
3. Wait for capacitors to discharge

**Replacement Steps:**

1. **Identify Wiring**
   - Take photos
   - Label all wires
   - Primary (120V) and secondary (24V)

2. **Disconnect Power**
   - Turn off breaker
   - Verify no voltage
   - Wait 5 minutes

3. **Disconnect Wires**
   - Primary wires (120V) first
   - Then secondary wires (24V)
   - Label everything

4. **Remove Old Transformer**
   - Remove mounting screws
   - Extract from housing

5. **Install New Transformer**
   - Mount in same location
   - Secure with screws
   - Ensure ventilation

6. **Connect Primary (120V)**
   - Black to hot (black wire)
   - White to neutral (white wire)
   - Follow color codes
   - Secure connections

7. **Connect Secondary (24V)**
   - Match wire positions
   - Usually two terminals (R and C)
   - Polarity doesn't matter on 24V AC

8. **Double-Check All Connections**
   - All wires secure
   - No exposed conductors
   - Proper wire routing

9. **Test Before Closing**
   - Restore power
   - Measure 24V output
   - Verify system operation
   - Check for overheating

## Common Installation Mistakes

❌ **Wrong Voltage Rating**
- Must match primary voltage
- 120V transformer on 240V = destroyed
- Check input voltage

❌ **Undersized VA Rating**
- Calculate total load
- Include all devices
- Add safety margin
- Bigger is better

❌ **Poor Mounting**
- Needs ventilation
- Can't be buried in insulation
- Away from heat sources
- Secure mounting

❌ **Loose Connections**
- All terminals must be tight
- Loose = arcing and failure
- Use proper wire nuts

❌ **Shorted Wiring**
- Bare wires touching
- Damaged insulation
- Will destroy new transformer

## Adding a Transformer

### For Smart Thermostats (C-Wire):

**If Missing C-Wire:**

**Option 1 - Add Wire:**
- Run new thermostat wire with C conductor
- Best long-term solution
- Requires access to wiring

**Option 2 - Add Plug-In Transformer:**
- Plug into nearby outlet
- Run wires to thermostat
- Quick solution
- No wiring through walls

**Option 3 - Use Add-A-Wire Device:**
- Steals power from G wire
- Works with 4-wire systems
- Moderate difficulty

**Option 4 - Use Transformer with C Adapter:**
- Some transformers include adapter
- Connects at furnace
- Creates C-wire functionality

## Transformer Maintenance

**Annual Inspection:**
- Check for overheating
- Measure output voltage
- Listen for excessive humming
- Check connections
- Look for corrosion

**Keep Transformer Cool:**
- Ensure ventilation
- Don't bury in insulation
- Keep area around transformer clear

**Monitor Load:**
- Don't overload
- Account for additions
- Upgrade if needed

## Transformer FAQs

**Q: Why is my transformer humming?**
A: Some hum is normal. Excessive hum indicates:
- Overload
- Loose laminations
- Failing transformer
- Voltage issues

**Q: Can I use a larger VA rating?**
A: Yes! Larger is fine. Provides safety margin. Can't hurt system.

**Q: Do I need a fused transformer?**
A: Not required if internal current limiting. Many have built-in protection. Separate fuse is extra safety.

**Q: Why does my new transformer keep failing?**
A: Usually indicates:
- Short in wiring
- Overload condition
- Wrong voltage rating
- Need to find and fix root cause

**Q: Can I add a second transformer?**
A: Generally not recommended. Can cause phase issues. Better to use one larger transformer.

**Q: How do I know if my transformer is bad?**
A: Test output voltage. Should be 22-28V AC. Below 22V or zero = bad transformer.

**Q: Will a bad transformer damage my system?**
A: Can cause:
- Intermittent operation
- Control board damage (from voltage spikes)
- Contactor chatter
- Generally won't damage major components

**Q: Can lightning damage transformers?**
A: Yes. Lightning can destroy transformers. Consider surge protection.

## For HVAC Contractors

**Stock Common Sizes:**
- 40VA
- 50VA (most common)
- 75VA
- Quick replacement
- Happy customers

**Bulk Pricing:**
- Volume discounts
- Mix and match VA ratings
- Keep full inventory

## Need Help Selecting a Transformer?

Our HVAC parts specialists are here to help! Contact us:
- **Phone:** [Your phone number]
- **Email:** [Your email]
- **Hours:** [Your business hours]
- **Location:** Westland, MI - Local pickup available

**Let us help you calculate the right VA rating for your system!**
