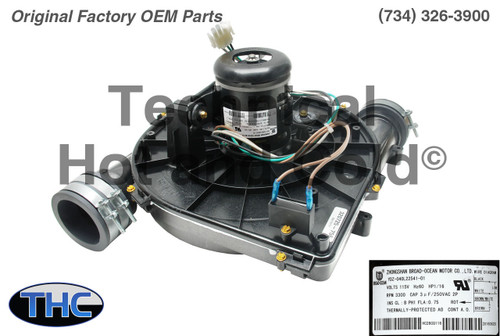

Carrier 320725-756 Draft Inducer Motor Assembly

4 reviews Write a Review
$339.14
SKU:
320725-756
Condition:
New
Weight:
22.00 LBS
Voltage:
115
Amps:
0.75
Horsepower:
1/16
RPM:
3300
  • Technical Hot & Cold BBB Business Review

Carrier 320725-756 Draft Inducer Motor Assembly

$339.14
  • Part Info & Specifications

  • Includes:

    • (1) - Draft Inducer Motor Assembly w/ Capacitor (320725-756)
    • (1) - Instruction Manual (IIK320725-002)

    Specifications:

    • Manufacture: Zhongshan Broad-Ocean Motor Co., LTD.
    • Model # YDZ-040L22541-01
    • Horsepower: 1/16
    • Voltage: 115
    • Hertz: 60
    • Full Load Amperage: 0.75
    • Phase: Single
    • RPM: 3300
    • Thermally Protected
    • Motor Cooling: Continuous Air Over
    • Insulation Class: B
    • Rotation: Clockwise Lead End
    • Housing Material: Plastic
    • CAPACITOR SPECIFICATIONS:
    • Model Number: C61-P2
    • Microfarad: 3
    • Tolerance Range: +/- 5%
    • Voltage: 250
    • Hertz: 50/60
    • AFC: 10,000
    • WIRING DIAGRAM:
    • Number of Wires (Including Ground Wire): 5
    • Brown Wire: Capacitor
    • Brown/White Wire: Capacitor
    • Connector: Green (Ground), White (Common), and Black (Power)
    • Motor Part Number: HC28CQ116
    • Housing Part Numbers: 320725-756 and 319824-402
    • Capacitor Part Number: HC91PD001B
    • Cooling Fan Part Number: 318977-401

    Replaces Old Carrier Part Numbers:

    • 320725-753
    • 320725-752
    • 320725-751

    Other Part Numbers:

    Replacement Components Division, Factory Authorized Parts, Carrier Corporation, 20111115, QCPASSED N5004, N1111111301286, 319824-402 N, C61-P2, HC91PD001B, C22.2NO.190, F2500301 1133, 102803-01, 00822529382784, HC270CB115, HC-270CB115, K33HXCHW-1017, K33HXCHW1017, HC28CQ116

    Fits Carrier, Bryant, Payne Models:(Press ctrl + F to find model number below if you have any questions call 734-326-3900 for further information)

    340AAV024040ACSA, 340AAV024060ACSA, 340AAV036040ACSA, 340AAV036060ACSA, 340AAV036080ACSA, 340AAV048060ACSA, 340AAV048080ACSA, 340AAV048100ACSA, 340AAV060080ACSA, 340AAV060100ACSA, 350AAV024040FCSA, 350AAV024060FCSA, 350AAV036040FCSA, 350AAV036060FCSA, 350AAV036080FCSA, 350AAV048060FCSA, 350AAV048080FCSA, 350AAV048100FCSA, 350AAV060080FCSA, 350AAV060100FCSA, 353AAV036040FBSA, 353AAV036060FBSA, 353AAV036080FBSA, 353AAV048080FBSA, 353AAV060100FBSA, 58MCB040---12108, 58MCB040---12112, 58MCB060---12108, 58MCB060---12112, 58MCB060---12116, 58MCB080---12112, 58MCB080---12116, 58MCB080---12120, 58MCB100---12116, 58MCB100---12120, 58MEB040-F-11112, 58MEB060-F-11112, 58MEB080-F-11112, 58MEB080-F-11116, 58MEB100-F-11120, 58MXB040-F-12108, 58MXB040-F-12112, 58MXB060-F-12108, 58MXB060-F-12112, 58MXB060-F-12116, 58MXB080-F-12112, 58MXB080-F-12116, 58MXB080-F-12120, 58MXB100-F-12116, 58MXB100-F-12120, PG9MAB024040ACSA, PG9MAB024060ACSA, PG9MAB036040ACSA, PG9MAB036060ACSA, PG9MAB036080ACSA, PG9MAB048060ACSA, PG9MAB048080ACSA, PG9MAB048100ACSA, PG9MAB060080ACSA, PG9MAB060100ACSA

    If you have any questions or would like to confirm part fitment, please call us at (734) 326-3900 and speak with one of our technicians.
