Carrier 326628-760 Draft Inducer Motor Assembly

2 reviews Write a Review
$0.00
Brand
Carrier
SKU:
326628-760
Condition:
New
Weight:
6.00 LBS
Replaced by Part #:
349336-760

  • Technical Hot & Cold BBB Business Review

Carrier 326628-760 Draft Inducer Motor Assembly

$0.00
  • Part Info & Specifications

  • Carrier 326628-760 Replacement Part

    NOTE: THIS PART IS NO LONGER AVAILABLE. IT HAS BEEN REPLACED BY PART # 349336-760

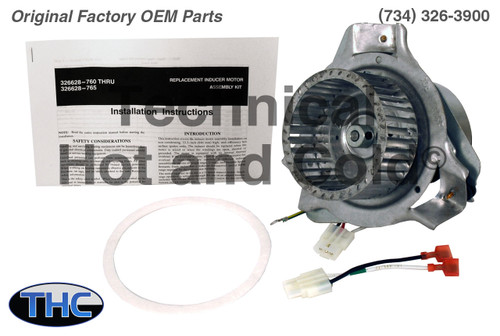

    Includes:

    • (1) - Draft Inducer Motor (326628-760)
    • (1) - Gasket (-)
    • (1) - Wiring (-)
    • (4) - Brass Screw (-)
    • (1) - Installation Instructions (IIK326628-02)

    Specifications

    • Motor Manufacturer: Jakel Inc.
    • Model # J238-100-10109
    • Voltage: 115
    • Hertz: 60
    • Phase: Single
    • Thermally Protected
    • Insulation Class: B
    • Motor Duty: Continuous
    • Hi-Speed: 3000 RPM, 8.20 Microhorsepower: 8.20, 0.83 Full Load Amperage
    • Lo-Speed: 2000 RPM, 2.45 Microhorsepower, 0.25 Full Load Amperage
    • Rotation: Counterclockwise Lead End
    • Motor Part # HC21ZE124A
    • Draft Inducer Blower Wheel: LA11XA048

    Replaces Old Carrier Part Numbers

    • 326628-710

    Other Part Numbers

    124, J238-100-10109, J238510010109, 18-16N, Beckett Air

    Fits Carrier, Bryant, Payne Models:

    (Press ctrl + F to find model number below.)

    310AAV024045AEJA, 310AAV024045AFJA, 310AAV024045AGJA, 310AAV024045EAJA, 310AAV024070AEJA, 310AAV024070AFJA, 310AAV024070AGJA, 310AAV024070EAJA, 310AAV036045AEJA, 310AAV036045AFJA, 310AAV036045AGJA, 310AAV036045EAJA, 310AAV036070AEJA, 310AAV036070AFJA, 310AAV036070AGJA, 310AAV036070EAJA, 310AAV048070AEJA, 310AAV048070AGJA, 310AAV048070EAJA, 310JAV024045AEJA, 310JAV024045AFJA, 310JAV024045AGJA, 310JAV024045EAJA, 310JAV024070AEJA, 310JAV024070AFJA, 310JAV024070AGJA, 310JAV024071EAJA, 310JAV036045AEJA, 310JAV036045AFJA, 310JAV036045AGJA, 310JAV036045EAJA, 310JAV036070AEJA, 310JAV036070AGJA, 310JAV036070EAJA, 310JAV048070AEJA, 310JAV048070AGJA, 310JAV048070EAJA, 311AAV024045AEJA, 311AAV024045AFJA, 311AAV024070AEJA, 311AAV024070AFJA, 311AAV036045AEJA, 311AAV036070AEJA, 311AAV048070AEJA, 311JAV024045AEJA, 311JAV024045AFJA, 311JAV024070AEJA, 311JAV024070AFJA, 311JAV036045AEJA, 311JAV036070AEJA, 311JAV048070AEJA, 312AAV024045AAJA, 312AAV024045ABJA, 312AAV024045ACJA, 312AAV024045ADJA, 312AAV024045AEJA, 312AAV036045AAJA, 312AAV036045ABJA, 312AAV036045ACJA, 312AAV036045ADJA, 312AAV036045AEJA, 312JAV024045AAJA, 312JAV024045ABJA, 312JAV024045ACJA, 312JAV024045ADJA, 312JAV024045AEJA, 312JAV036045AAJA, 312JAV036045ABJA, 312JAV036045AEJA, 313AAV024045AAJA, 313AAV024045ABJA, 313AAV024045ACJA, 313AAV048070AAJA, 313AAV048070ABJA, 313AAV048070ACJA, 313ABV036045AAJA, 313ABV036070AAJA, 313ABV048070AAJA, 313JAV024045AAJA, 313JAV024045ABJA, 313JAV024045ACJA, 313JAV048070AAJA, 313JAV048070ABJA, 313JAV048070ACJA, 313JBV036045AAJA, 313JBV036070AAJA, 313JBV048070AAJA, 314AAV036045AAJA, 314AAV036045ABJA, 314JAV036045ABJA, 58CTA045---10108, 58CTA045---10112, 58CTA045---11108, 58CTA045---11112, 58CTA045---12108, 58CTA045---12112, 58CTA045---13108, 58CTA045---13112, 58CTA045---14108, 58CTA045---14112, 58CTW045---10112, 58CTW045---11112, 58CTW045---12112, 58CTX045---10108, 58CTX045---10112, 58CTX045---11108, 58CTX045---11112, 58CTX045---12108, 58CTX045---12112, 58CTX045---13108, 58CTX045---13112, 58CTX045---14108, 58CTX045---14112, 58CTY045---12112, 58DLA045-E-10108, 58DLA045-E-10112, 58DLA045---14108, 58DLA045---14112, 58DLA045---15108, 58DLA070-E-10108, 58DLA070-E-10112, 58DLA070-E-10116, 58DLA070---14108, 58DLA070---14112, 58DLA070---14116, 58DLA070---15108, 58DLX045---14108, 58DLX045---14112, 58DLX045---15108, 58DLX070---14108, 58DLX070---14112, 58DLX070---14116, 58DLX070---15108, 58PHA045---11108, 58PHA045---10108, 58PHA045---12108, 58PHA070---11116, 58PHA070---10116, 58PHA070---12116, 58PHB045---10112, 58PHB070---10112, 58PHB070---10116, 58PHX045---11108, 58PHX045---10108, 58PHX045---12108, 58PHX070---11116, 58PHX070---10116, 58PHX070---12116, 58PHY045---10112, 58PHY070---10112, 58PHY070---10116, 58STA045---14108, 58STA045---14112, 58STA045---15108, 58STA045---15112, 58STA045---16108, 58STA045---16112, 58STA045-E-10108, 58STA045-E-10112, 58STA070---14108, 58STA070---14112, 58STA070---14116, 58STA070---15108, 58STA070---15112, 58STA070---16108, 58STA070---16112, 58STA070---16116, 58STA070-E-10108, 58STA070-E-10112, 58STA070-E-10116, 58STX045---14108, 58STX045---14112, 58STX045---15108, 58STX045---15112, 58STX045---16108, 58STX045---16112, 58STX045-E-10108, 58STX045-E-10112, 58STX070---14108, 58STX070---14112, 58STX070---14116, 58STX070---15108, 58STX070---15112, 58STX070---16108, 58STX070---16112, 58STX070---16116, 58STX070-E-10108, 58STX070-E-10112, 58STX070-E-10116, PG8JAA024045AEJA, PG8JAA024045AFJA, PG8JAA024045AGJA, PG8JAA024070AEJA, PG8JAA024070AFJA, PG8JAA024070AGJA, PG8JAA036045AEJA, PG8JAA036045AFJA, PG8JAA036045AGJA, PG8JAA036070AEJA, PG8JAA036070AFJA, PG8JAA036070AGJA, PG8JAA048070AEJA, PG8JAA048070AGJA, PG8JEA024045AAJA, PG8JEA024045ABJA, PG8JEA024045ACJA, PG8JEA048070AAJA, PG8JEA048070ABJA, PG8JEA048070ACJA, PG8JEB036045AAJA, PG8JEB036070AAJA, PG8JEB048070AAJA, PG8MAA024045AEJA, PG8MAA024045AFJA, PG8MAA024045AGJA, PG8MAA024070AEJA, PG8MAA024070AFJA, PG8MAA024070AGJA, PG8MAA036045AEJA, PG8MAA036045AFJA, PG8MAA036045AGJA, PG8MAA036070AEJA, PG8MAA036070AFJA, PG8MAA036070AGJA, PG8MAA048070AEJA, PG8MAA048070AGJA, PG8MEA024045AAJA, PG8MEA024045ABJA, PG8MEA024045ACJA, PG8MEA048070AAJA, PG8MEA048070ABJA, PG8MEA048070ACJA
