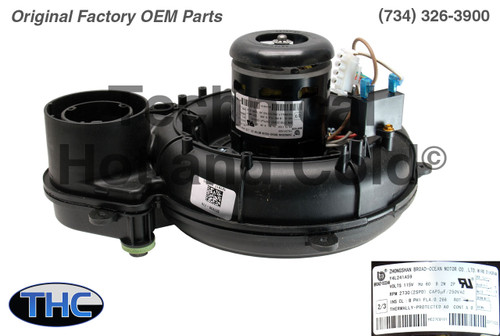

Carrier 337938-774-CBP Draft Inducer Motor Assembly Kit

No reviews yet Write a Review
$0.00
SKU:
337938-774-CBP
Condition:
New
Weight:
13.00 LBS
New Part #:
Replaced by Part # 337938-785-CBP
  • Technical Hot & Cold BBB Business Review

Carrier 337938-774-CBP Draft Inducer Motor Assembly Kit

$0.00
  • Part Info & Specifications

  • NOTE: THIS PART IS NO LONGER AVAILABLE. IT HAS BEEN REPLACED BY PART # 337938-785-CBP

    Includes:

    • (1) - Draft Inducer Motor Assembly w/ Capacitor (337938-774-CBP)
    • (1) - Inducer Outlet Restrictor (40,000 Input Only) (-)
    • (1) - 2-Stage to Single Stage Adapter Harness (PSC Only Except 140,000 Input) (-)
    • (5) - #8 1/2" Hex Head Screws (-)
    • (2) - #8 3/8" Hex Head Screws (-)
    • (1) - Installation Instructions (IIK-337938-04)

    Specifications:

    • Manufacturer: Zhongshan Broad-Ocean Motor Co., LTD.
    • Model # Y4L241B004L
    • Voltage: 115
    • Hertz: 60
    • Full Load Amperage: 0.393
    • Watts: 16.9
    • Phase: Single
    • RPM: 3030
    • Speeds: 2
    • Thermally Protected
    • Insulation Class: B
    • Motor Duty/Cooling: Continuous Air Over
    • Capacitor Rating: 5 MFD @ 250 VAC
    • Rotation: Counterclockwise Lead End
    • Housing: Plastic

    Replaces Old Carrier Part Numbers:

    • 337938-771-CBP
    • 337938-761-CBP

    Other Part Numbers:

    102615, 170134, Y4L241B004L, HB27CQ102, 2315, Broad-Ocean, N1506060902243, N5004, Inducer HSG Kit, 00822529499369, Replacement Components Division, Carrier Corporation, Factory Authorized Parts

    Fits Carrier, Bryant, Payne Models:(Press ctrl + F to find model number below if you have any questions call 734-326-3900 for further information)

    59SC2A060S141110, 59SC2A060S171114, 59SC2A080S171116, 59SC2A080S211120, 59SC2B060S141112, 59SC2B060S141212, 59SC2B060S171116, 59SC2B060S171216, 59SC2B080S171116, 59SC2B080S171216, 59SC2B080S211120, 59SC2B080S211220, 59SC2C060S141112, 59SC2C060S171116, 59SC2C080S171116, 59SC2C080S211120, 59SC5A060S141110, 59SC5A060S141210, 59SC5A060S171114, 59SC5A060S171214, 59SC5A080S171116, 59SC5A080S171216, 59SC5A080S211120, 59SC5A080S211220, 59SP2A060E141112, 59SP2A060E171114, 59SP2A080E171116, 59SP2A080E211120, 59SP5A060E141112, 59SP5A060E171214, 59SP5A080E171216, 59SP5A080E211120, 59SP5A080E211220, 59TN6A080V211120, 59TP5A060E141112, 59TP5A060E171214, 59TP5A080E171216, 59TP5A080E211120, 59TP5A080E211220, 59TP6A060E141112, 59TP6A060E171114, 59TP6A080E171116, 59TP6A080E211120, 912SA30060S14A-A, 912SA42060S17A-A, 912SA48080S17A-A, 912SA60080S21A-A, 912SB36060S14A-A, 912SB36060S14A-B, 912SB48060S17A-A, 912SB48060S17A-B, 912SB48080S17A-A, 912SB48080S17A-B, 912SB60080S21A-A, 912SB60080S21A-B, 912SC36060S14A-A, 912SC48060S17A-A, 912SC48080S17A-A, 912SC60080S21A-A, 915SA30060S14A-A, 915SA30060S14A-B, 915SA42060S17A-A, 915SA42060S17A-B, 915SA48080S17A-A, 915SA48080S17A-B, 915SA60080S21A-A, 915SA60080S21A-B, 922SA36060E14A-A, 922SA42060E17A-A, 922SA48080E17A-A, 922SA60080E21A-A, 925SA36060E14A-A, 925SA42060E17A-B, 925SA48080E17A-B, 925SA60080E21A-A, 925SA60080E21A-B, 925TA36060E14A-A, 925TA42060E17A-B, 925TA48080E17A-B, 925TA60080E21A-A, 925TA60080E21A-B, 926TA36060V14A-A, 926TA42060V17A-A, 926TA48080V17A-A, 926TA60080V21A-A, 986TA36060V14A-A, 986TA60080V21A-A, 986TB42060V17A-A, 986TB42080V17A-A, 986TB60080V21A-A, PG92SAS42060BAAA, PG92SAS48080BAAA, PG92SAS60080CAAA, PG92SBS48060BAAA, PG92SBS48060BBAA, PG92SBS48080BAAA, PG92SBS48080BBAA, PG92SBS60080CAAA, PG92SBS60080CBAA, PG92SCS48060BAAA, PG92SCS48080BAAA, PG92SCS60080CAAA, PG95SAS42060BAAA, PG95SAS42060BBAA, PG95SAS48080BAAA, PG95SAS48080BBAA, PG95SAS60080CAAA, PG95SAS60080CBAA, PG95XAT36060AAAA, PG95XAT42060BBAA, PG95XAT48080BBAA, PG95XAT60080CAAA, PG95XAT60080CBAA, PG96VAT42060BAAA, PG96VAT42060BBAA, PG96VAT48080BAAA, PG96VAT48080BBAA, PG96VAT60080CAAA, PG96VAT60080CBAA

    If you have any questions or would like to confirm part fitment, please call us at (734) 326-3900 and speak with one of our technicians.
