Carrier 58MV660002 ECM 3.0 Blower Motor Assembly

Carrier 58MV660002 ECM 3.0 Blower Motor Assembly

Have Questions? Ask a Tech!

(734) 326-3900 Talk to a Technician

Genuine OEM Parts

Offering genuine parts for your specific brand.
In-House HVAC Techs

We help you diagnose, find, and install the part.
1-Year Warranty & Returns

Failed, or didn't need it? No hassle returns.
Expedited Delivery

Offering competitively-priced expedited shipping.

Carrier 58MV660002 ECM 3.0 Blower Motor Assembly

No reviews yet

$1,157.85

Brand: Carrier
SKU:: 58MV660002
Condition:: New
Weight:: 19.00 LBS
Voltage:: 120/240
Amps:: 9.6/5.6
Horsepower:: 3/4
RPM:: 1050
Shaft Diameter:: 0.5
Shaft Length:: 3.9375
Frame:: 48

Carrier 58MV660002 ECM 3.0 Blower Motor Assembly

$1,157.85

Part Info & Specifications

Description

Carrier 58MV660002 Replacement Part

Includes:

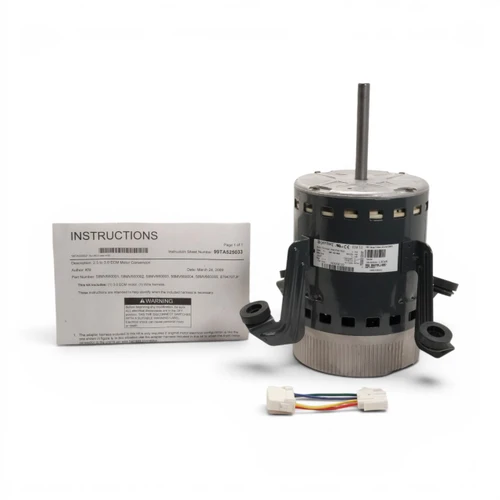

(1) - ECM 3.0 Blower Motor Assembly (58MV660002)
(1) - Wire Harness (4-Pin to 16-Pin) (8794707JF)
(1) - Instructions (99TA525033)

Specifications

Manufacturer: genteq
Model # 5SME39SXL3045
Horsepower: 3/4
Voltage: 120/240
Hertz: 60/50
Amperage: 9.6/5.6
Phase: Single
RPM: 1050
Frame: 48
Electronic Protected
Insulation Class B
Motor Duty/Cooling: Continuous Air Over
Bearings: Ball
Rotation: Reversible
Shaft Type: Single Side Flat Shaft
Shaft Diameter: 1/2"
Shaft Length: 3 15/16"

🔧 Note: Always check the blower wheel on your blower assembly. Bad or unbalanced blower wheels can cause premature motor failure due to vibration. If you are not sure what blower wheel fits your blower assembly, call us at 734-326-3900.

🚀 Note: The most common cause of ECM motor failure is poorly conditioned power. To protect sensitive ECM modules against transient voltage, power surges, lightning, and voltage spikes, it is highly recommended that you install a Zebra VZPRO inline ECM protector.

Replaces Old Carrier Part Numbers

HD46RE122
HD46RE120

Other Part Numbers

5SME39SX L3045,Replacement Components Division, Factory Authorized Parts, Carrier Corporation, 58MV 660 002, ECM Motor, 0 08 22529 33897 2, A626Y4323690, 6024138 000025, 5SME39SL0673

Fits Carrier, Bryant, Payne Models:

(Press ctrl + F to find model number below.)

48XLNA3606030---, 48XLNA3609030---, 48XLNA4206030---, 48XLNA4209030---, 48XLNA4809030---, 48XLNA4811530---, 48XLNA4813030---, 48XL-A3606030---, 48XL-A3609030---, 48XL-A4206030---, 48XL-A4209030---, 48XL-A4809030---, 48XL-A4811530---, 48XL-A4813030---, 48XTNA3606030---, 48XTNA3609030---, 48XTNA4206030---, 48XTNA4209030---, 48XTNA4809030---, 48XTNA4811530---, 48XTNA4813030---, 48XT-A3606030---, 48XT-A3609030---, 48XT-A4206030---, 48XT-A4209030---, 48XT-A4809030---, 48XT-A4811530---, 48XT-A4813030---, 50XL-A36---300--, 50XL-A42---300--, 50XL-A48---300--, 50XT-A36---300--, 50XT-A42---300--, 50XT-A48---300--, 577DNWA36060AA--, 577DNWA36060NA--, 577DNWA36090AA--, 577DNWA36090NA--, 577DNWA42060AA--, 577DNWA42060NA--, 577DNWA42090AA--, 577DNWA42090NA--, 577DNWA48090AA--, 577DNWA48090NA--, 577DNWA48115AA--, 577DNWA48115NA--, 577DNWA48130AA--, 577DNWA48130NA--, 607DNXA36000AA--, 607DNXA42000AA--, 607DNXA48000AA--, 677DNWA36060AA--, 677DNWA36060NA--, 677DNWA36090AA--, 677DNWA36090NA--, 677DNWA42060AA--, 677DNWA42060NA--, 677DNWA42090AA--, 677DNWA42090NA--, 677DNWA48090AA--, 677DNWA48090NA--, 677DNWA48115AA--, 677DNWA48115NA--, 677DNWA48130AA--, 677DNWA48130NA--, 707DNXA36000AA--, 707DNXA42000AA--, 707DNXA48000AA--, FE4ANB006000ABAA, FE4ANB006T00ABAA, FE5ANB004000ABAA, FE5ANB004T00ABAA
