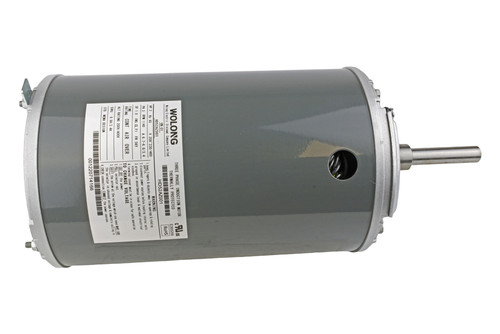

Carrier HD52AZ001 Motor

No reviews yet Write a Review
$819.40
Brand
Carrier
SKU:
HD52AZ001
Condition:
New
Weight:
60.00 LBS
Voltage:
208-230/460
Amps:
6.7-6.8/3.4
Horsepower:
2
RPM:
1140
Shaft Diameter:
5/8"
Shaft Length:
3-1/4"
Frame:
56
  • Technical Hot & Cold BBB Business Review

Carrier HD52AZ001 Motor

$819.40
  • Part Info & Specifications

  • Carrier HD52AZ001 Replacement Part

    Includes:

    • (1) - Motor (HD52AZ001)

    Specifications

    • Manufacturer: Wolong
    • Three Phase Induction Motor
    • Horsepower: 2
    • Voltage: 208-230/460
    • Hertz: 60
    • Number of Phases: 3
    • Amps: 6.7-6.8/3.4
    • RPM: 1140
    • Frame: 56
    • Shaft Diameter: 5/8"
    • Shaft Length: 3-1/4"
    • Length: 15-1/4"
    • Thermally Protected
    • Continuous Air Over
    • Insulation Class: F
    • Alt Rating: 200V/400V
    • Hertz: 50
    • Amps: 6.8A/3,4A
    • STD: Nema Design

    Country of Origin: Vietnam

    US HTS Code: 8501.20.6000

    🔧 Note: Always check the fan blade on your fan assembly. Bad or unbalanced fan blades can cause premature motor failure due to vibration. If you are not sure what fan blade fits your fan assembly, call us at 734-326-3900.

    Replaces Old Carrier Part Numbers

    • HD52AK001

    Other Part Numbers

    Factory Authorized Parts, Replacement Components Division, Carrier Corporation, 0 08 22529 94836 2, E305259, 001220714166,

    Fits Carrier, Bryant, Payne Models:

    (Press ctrl + F to find model number below.)

    Various. (Call 734-326-3900 with your model and serial number for more information.)
