Deltatherm 020-2407 Replacement Part
CALL (734) 326-3900 or SEND MESSAGE TO PARTS@TECHNICALHOTANDCOLD.COM FOR PRICE!
Includes:

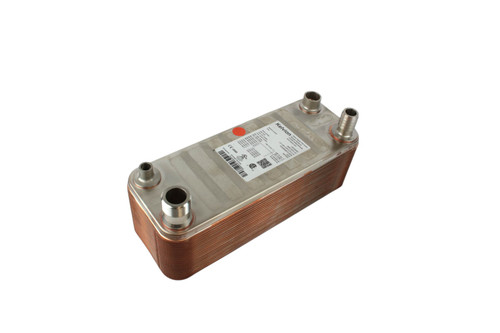

- (1) - Plate Heat Exchanger (020-2407)
Specifications
- Specifications
- Manufacturer: Kelvion
- Model / Type: GBS 220H-50 (EH1, EH2) B
- Material Number: 100623301
- Serial Number: 5700004066-0001
- Year Built: 2025
- Temperature Ratings
- Minimum Allowable Temperature: -196C (-321F)
- Maximum Allowable Temperature: 200C (392F)
- Pressure Ratings
- Max Allowable Pressure (Side 1): 31 bar (450 psi)
- Max Allowable Pressure (Side 2): 31 bar (450 psi)
- Internal Volume
- Volume Side 1: 1.10 L (0.039 ft cubed)
- Volume Side 2: 1.15 L (0.041 ft cubed)
- Volume Side 3: 0.00 L
- Volume Side 4: 0.00 L
- Refrigerant Compatibility
- Compatible with all refrigerants except ammonia
- Certifications
- UL Listed – Heat Exchanger, Refrigerant (3P77)
- CSA Certified (C/US)
- CE Marked (CE-0090)
Replaces Old Deltatherm Part Numbers
- There are no older part numbers.
Fits Models:
(Press ctrl + F to find model number below.)
Various. (Call 734-326-3900 with your model and serial number for more information.)
Technical Hot & Cold honors all manufacturer warranties and offers a 1-year warranty on non-maintenance items.
