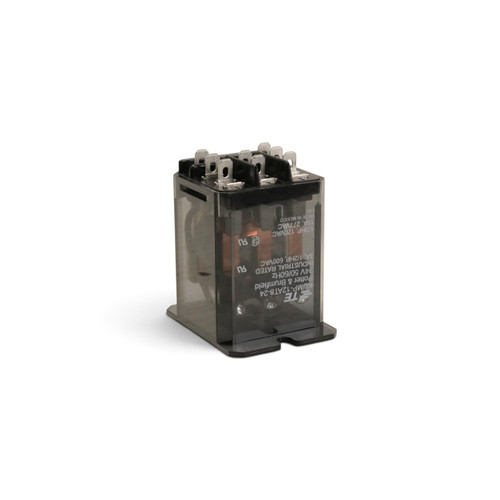

ICP 611891 Relay Kit

Includes:

• (1) - Relay (-)
• (10) - Spade Terminals (-)

Specifications:

• Manufacturer: Tyco Electronics / Potter & Brumfield
• Model # KUMP-12AT8-24
• Type: General Purpose Plug In
• 3 Pole - Single Throw
• Voltage: 24
• Hertz: 50/60
• Max Amps: 15.0
• VOLTAGE: 120
• Horsepower: 1/3
• VOLTAGE: 277
• Amps: 15.0
• VOLTAGE: 600
• Horsepower: 1/2
• Amperage: 3.0

Replaces Old ICP Part Numbers:

• There are no older part numbers.

Other Part Numbers:

Tyco Electronics, KUMP-12AT8-24, Potter & Brumfield, 24V 50/60Hz, LF16 100, 611891, Relay 24V 3PNO, 0 08 23960 16578 3, K/3, Fast OEM Parts, International Comfort Products

Fits ICP, Heil, Tempstar, Arcoaire, Comfortmaker, Snyder General, KeepRite and Day & Night Models:(Press ctrl + F to find model number below if you have any questions call 734-326-3900 for further information)

867.767013, 867.769010, 867.769020, 867.769030, 867.779010, 867.779020, 867.779030, 867.779062, NUGI050DD04, NUGK050AF01, NUGK050AF02, NUGK050CF01, NUGK050CF02, NUGK080AG01, NUGK080AG02, NUGK080CG01, NUGK080CG02, NUGK105AG01, NUGK105AG02, NUGK105AH01, NUGK105AH02, NUGK105CG01, NUGK105CG02, NUGK105CH02, NULK050AF01, NULK050AF02, NULK080AG01, NULK080AG02, NULK105AG01, NULK105AG02, NULK105AH01, NULK105AH02, NULK125AH01, NULS075BG02

If you have any questions or would like to confirm part fitment, please call us at (734) 326-3900 and speak with one of our technicians.
