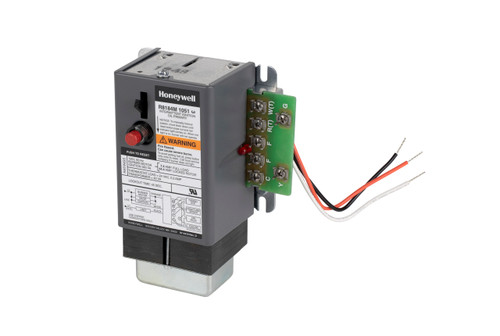

ICP R8184M1051 Oil Burner Protection Relay w/ Transformer

ICP R8184M1051 Replacement Part

Includes:

• (1) - Oil Burner Protection Relay w/ Transformer (R8184M1051)

Specifications

• Manufacturer: Honeywell
• Model # R8184M1051
• Interrupted Ignition
• Primary Voltage: 120
• Hertz: 60
• Control Circuit: 24
• 45 Second Safety Switch Timing
• Includes Manual Trip Safety Switch & Safety Lockout Indicator Light
• Used with C554A Cadmium Sulfide Flame Detector and 24V Thermostat
• 40 VA Transformer Power Control Circuit
• Mounts on a 4x4 Inch Junction Box, Burner Housing or Appliance Cabinet
• Requires Enclosure for Line Voltage Wiring
• Burner Motor Load Rating @ 120V: Full Load 7.4A/Locked Rotor 44.4A
• Ignition Rating: 360 VA in Addition to Above Burner Motor Load

Replaces Old ICP Part Numbers

• 1170946
• 1665425
• 1665426
• 1665427
• 1695003
• 1695044
• 604116
• 612454
• 752196

Other Part Numbers

TRADELINE OIL, BURNER PROTECTION RELAY W/, TRANSFORMER, Honeywell, R8184M 1051, Intermittent Ignition Oil Primary

Fits ICP, Heil, Tempstar, Arcoaire, Comfortmaker, Snyder General, KeepRite and Day & Night Models:

(Press ctrl + F to find model number below if you have any questions call 734-326-3900 for further information)

Replacement for Honeywell (R8184M1002, R8184M1051), White Rodgers (668-451), Simicon (SH4047-200)
