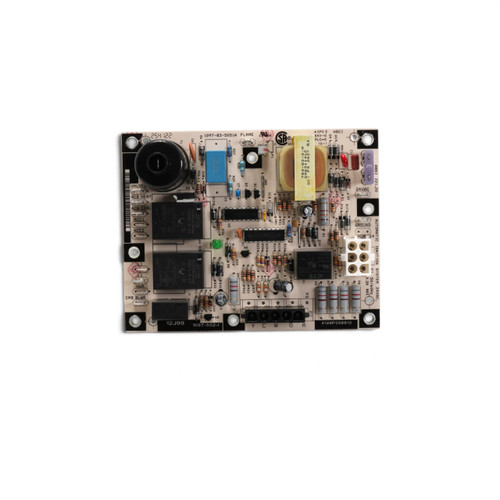

Lennox Y4749 Pulse Furnace Ignition Control Board

1 reviews Write a Review
$228.76
SKU:
Y4749
Condition:
New
Weight:
4.00 LBS
  • Technical Hot & Cold BBB Business Review

Lennox Y4749 Pulse Furnace Ignition Control Board

$228.76
  • Part Info & Specifications

  • Includes:

    • (1) - Control Box (BGN891-2)
    • (1) - Spade Connector (-)
    • (1) - Jumper Wire w/ Resistor (-)
    • (1) - Installation Instructions (BASO-INS-BGN891)

    Specifications:

    • Manufacture: Baso
    • Model Number: BGN891
    • Pre-Purge: 30 Seconds
    • Trial: 5 @ 8 Seconds
    • Retry Continously every 60 Seconds
    • Inter - Purge: 30 Seconds
    • Post Purge: 30 Seconds
    • Voltage: 24
    • Hertz: 50/60
    • NEC Class 2
    • Valve 4A Max.
    • Current Draw: 0.2 Amperage
    • Blower Motor: 120/240VAC 6A Max.
    • Spark Gap: 0.2 IN. Max

    Replaces Old Lennox Part Numbers:

    • 60J00
    • 99C97
    • 97H02
    • 96C66
    • 87F22
    • 86H30
    • 73K86
    • 72H68
    • 56G14
    • 52J18
    • 41F46
    • 34K83
    • 99C9701PR
    • 99C9701
    • 96C6601
    • 87F2201
    • 77C3801
    • 56G1401PR
    • 41F4601PR
    • 34K8301
    • 86H3001
    • 73K8601
    • 72H6801
    • 52J1801

    Replaces Old Allied, Armstrong, Concord, Ducane Part Numbers:

    • There are no older part numbers.

    Other Part Numbers:

    Other Part Numbers:, Baso, BGN891-2, W1209, W1208CR, ANSI Z21.20 Can/CSA-C222, No. 199-M89, BGN891, BASO-INS-NGN891, VSP1-1, BGN891-2C, PRC BGN891-2C Pulse Furnace Replacement Control, TROV000157033, Baso Gas Products LLC, W1344

    Fits Models:(Press ctrl + F to find model number below if you have any questions call 734-326-3900 for further information)

    G14-100-1, G14-130-1, G14-40-15, G14-40-2, G14-40-23, G14-40-3, G14-40-4, G14-40-5, G14-40-6, G14-60-12, G14-60-2, G14-60-20, G14-60-22, G14-60-23, G14-60-3, G14-60-4, G14-60-6, G14-80-1, G14-80-11, G14-80-13, G14-80-3, G14-80-7, G14-80-8, G14-80-9, G14Q3-100-5, G14Q3-40-2, G14Q3-60-12, G14Q3-60-15, G14Q3-60-19, G14Q3CAN-40-1, G14Q3CAN-40-22, G14Q3CAN-40-3, G14Q3CAN-40-4, G14Q3CAN-40-5, G14Q3CAN-60-1, G14Q3CAN-60-22, G14Q3CAN-60-23, G14Q3CAN-60-5, G14Q3CAN-60-6, G14Q3CAN-80-1, G14Q3CAN-80-22, G14Q3CAN-80-3, G14Q3CAN-80-4,G14Q3CAN-80-5, G14Q4/5CAN-100-6, G14Q4/5CAN-100-7, G14Q4CAN-60-1, G14Q4CAN-60-4, G14Q4CAN-60-5, G14Q4CAN-60-6, G14Q4CAN-80-21, G14Q4CAN-80-5, G14Q5CAN-100-6, G14Q5CAN-100-7, G21Q3-40-3, G21Q3-40-4, G21Q3-60-2, G21Q3-80-3, G21Q3-80-4, G21Q4/5-100-3, G21Q4/5-100-4, G21Q4/5-100-5, G21Q4-80-4, G21Q5-100-2, G21Q5-80-2, GCS16W-1353-270-1, GCS16W-1353-270-2, GCS16W-1353-270-4, GCS16W-1353-270-5, GCS16W-1353-270-6, GCS16W-1353-270-7, GHP16-953-2, GHP16-953-3, GHP16-953-180-1, GHP16-953-180-2, GHP16-953-180-3, GSR14Q3-50-1, GSR14Q3-80-3, GSR14Q3-80-4, GSR14Q3-80-5, GSR14Q3-80-7, GSR14Q3-80-8, GSR14Q4/5-100-2, GSR14Q4/5-100-3, GSR14Q4/5-100-5, GSR14Q4/5-100-6, GSR14Q4/5-80-1, GSR14Q4/5-80-10, GSR14Q4/5-80-2, GSR14Q4/5-80-3, GSR14Q4/5-80-4, GSR14Q4/5-80-5, GSR14Q4/5-80-6, GSR14Q4-50-1, GSR14Q4-50-4, GSR14Q4-50-5, GSR14Q4-50-6, GSR14Q4-50-9, GSR21CVS-100-4, GSR21CVS-80-4, GSR21Q3-50-7, GSR21Q3-80-4, GSR21Q4/5-100-7, GSR21Q4/5-100-8, GSR21Q4/5-80-7, GSR21Q4/5-80-8, GSR21Q4-50-7, GSR21Q4-50-8, GSR21V5-100-7, GSR21V5-100-8, GSR21V5-80-12

    Fits Allied, Armstrong, Concord, Ducane, Magic Chef, and Magic-Pak Models:(Press ctrl + F to find model number below if you have any questions call 734-326-3900 for further information)

    Various. (Call 734-326-3900 with your model and serial number for more information.)

    If you have any questions or would like to confirm part fitment, please call us at (734) 326-3900 and speak with one of our technicians.
