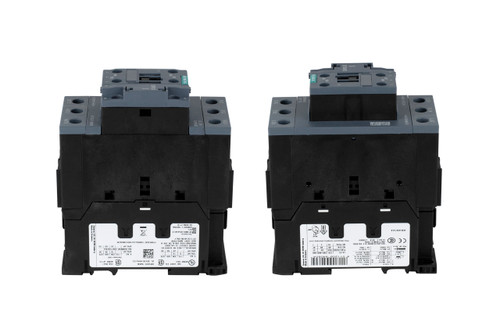

Schimpke 6005109 Power Contactor

Schimpke 6005109 Replacement Part

CALL (734) 326-3900 or SEND MESSAGE TO PARTS@TECHNICALHOTANDCOLD.COM FOR PRICE!

Note: MAX HEIGHT ABOVE SEA LEVEL: 2000 METERS

Includes:

• (1) - Contactor (6005109)

Specifications

• Manufacturer: Siemens
• Model # 3RT2027-1BB40
• Product Type: 3RT2
• Size of Contactor: S0
• # of Poles: 3
• Circuit: Normally Open
• Auxillary Switch: Yes
• Max Voltage: 690
• Auxiliary Contact Max Current: 10 A
• Protection Class: IP20
• Voltages: 110/220/440/600
• COIL VOLTAGE
• VDC: 24
• Hertz: 50/60
• OPERATING CURRENT
• AC-1
• At AC-1 @ 400 V (At Ambient Temperature 40 °C Rated Value): 50 A
• At AC-1 Up To 690 V (At Ambient Temperature 40 °C
• rated value): 50 A
• At AC-1 Up To 690 V (At Ambient Temperature 60 °C
• Rated Value): 42 A
• AC-2
• At AC-2 @ 400 V Rated Value: 32 A
• AC-3
• At AC-3 @ 400 V Rated Value: 32 A
• At 500 V Rated Value: 32 A
• At 690 V Rated Value: 21 A

Country of Origin: Germany

Replaces Old Schimpke Part Numbers

• There are no older part numbers.

Other Part Numbers

SIEMENS, 3RT2027-1BB40, 180312, 843, Contactor, 05127540, 180312816104

Fits Models:

(Press ctrl + F to find model number below.)

Various. (Call 734-326-3900 with your model and serial number for more information.)
